HDMI Extender 60m 4K 60Hz via Cat5E/6 Ethernet Cable HD Transmitter Receiver with IR


To our esteemed customers due to the Covid 19 pandemic we encourage you to order online and it will be delivered to you. Orders within Nairobi is pay on delivery. Orders outside Nairobi is pay on order.

 Order Online by Clicking ORDER via Whatsapp Button
Pay ONLINE or on Delivery
 Mpesa Till Number 750845
 Speedy Same Day Delivery within Nairobi
Free Delivery within Nairobi CBD
Order any Item online from Amtel, Pay Online & have it delivered to you countrywide.

KSh4,500 KSh5,000

Feel free to make your order for HDMI Extenders price in Kenya Nairobi. Experience high quality electronics and accessories at the best price in Kenya.

Make a choice from various HDMI Extenders available at a very affordable price in Nairobi, Kenya at Amtel Online Merchants. Get it delivered wherever you are in Kenya. We also offer Same day delivery within Nairobi.

Other than HDMI Extenders in Kenya Nairobi, Check out other electronics in Nairobi Kenya. Take time to look at our fb page Amtel Online Merchants

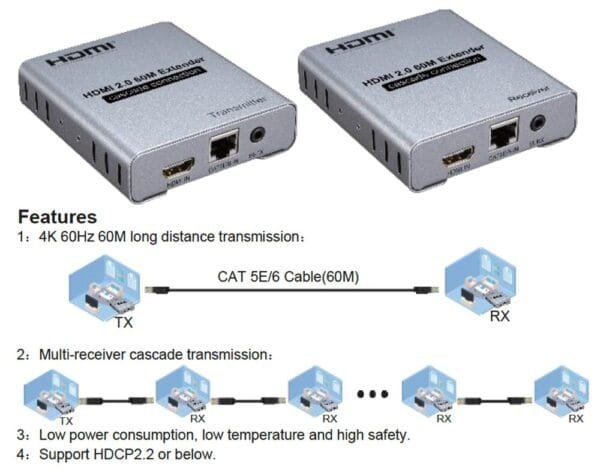

The HD 2.0 60m extender uses single cat-5E or cat-6(recommended) cable instead of HD cable, you can extend the HD 2.0 [email protected] signal to 60 meters.or [email protected] and 1080P singal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.

Specifications
Length of CAT-5E/CAT-6 cable between Rx and TX……………….up to 60 meters
HD input……………………………………………4K/1080p/720p/576p/576i/480p/480i
Support audio format………………………….DTS/Dolby/LPCM
HD output………………………………………..4K/1080p/720p/576p/576i/480p/480i
Max bandwidth………………………………………600MHz
Max baud rate………………………………………..6Gbps x3
Input video signal…………………………………..0.5~1.5Volts p-p
Output DDC signal………………………………………5Volts p-p (TTL)
Input HD cable distance ………….……………..≤10m AWG26 HDMI standard cable
Output HD cable distance………………………..≤10m AWG26 HDMI standard cable
TX Max working current………………..350mA
RX Max working current………………..200mA
Power adapter format………………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range…………………(-15 to +55℃)
Operating Humidity range…………………………5% to 90%RH (No Condensation)
Dimension (L x W x H)………………………………..94x84x24(mm)
The package includes
1.Transmitter……………………………..1PC
2.Receiver………………………………….1PC
3.IR cable…………………………………..1Pair
4.5V/1A Power adapter……………2PCS
5.User Manual…………………………..1PC

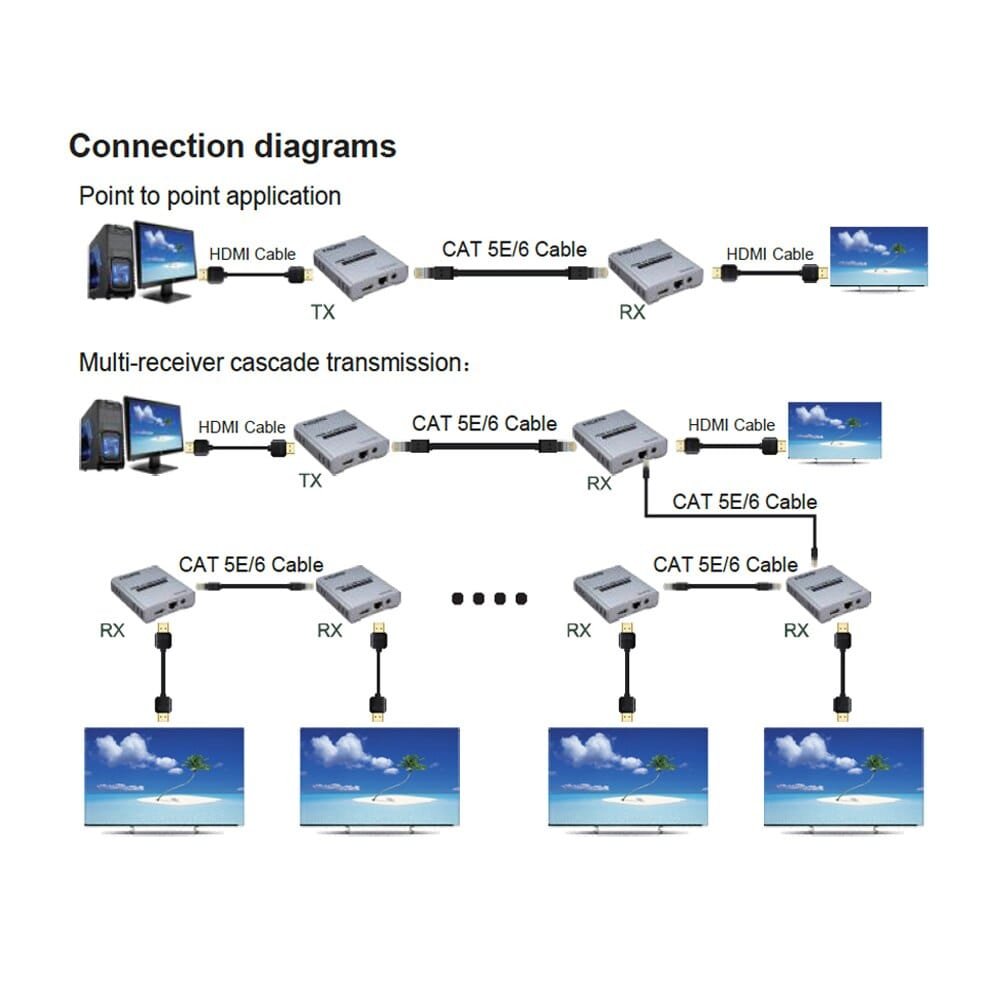

Connection and operation
1.Connect source device with transmitter by one HD cable, the cable max length is 10 meters.
2.Connect display device with receiver by one HD cable, the cable max length is 10 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 60 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5.Connect the power supply to the TX and RX. 6.LED indicator:
6.When the HD indicator is on, it indicates that the HD signal input , and the RJ45 indicator is on, indicating that the network port signal input .
